Interconnect Fabric

Why we need it?

The Interconnect Built in 00 Basic 1 to 1 Interconnect only accommodates 1 Requestor and completer.

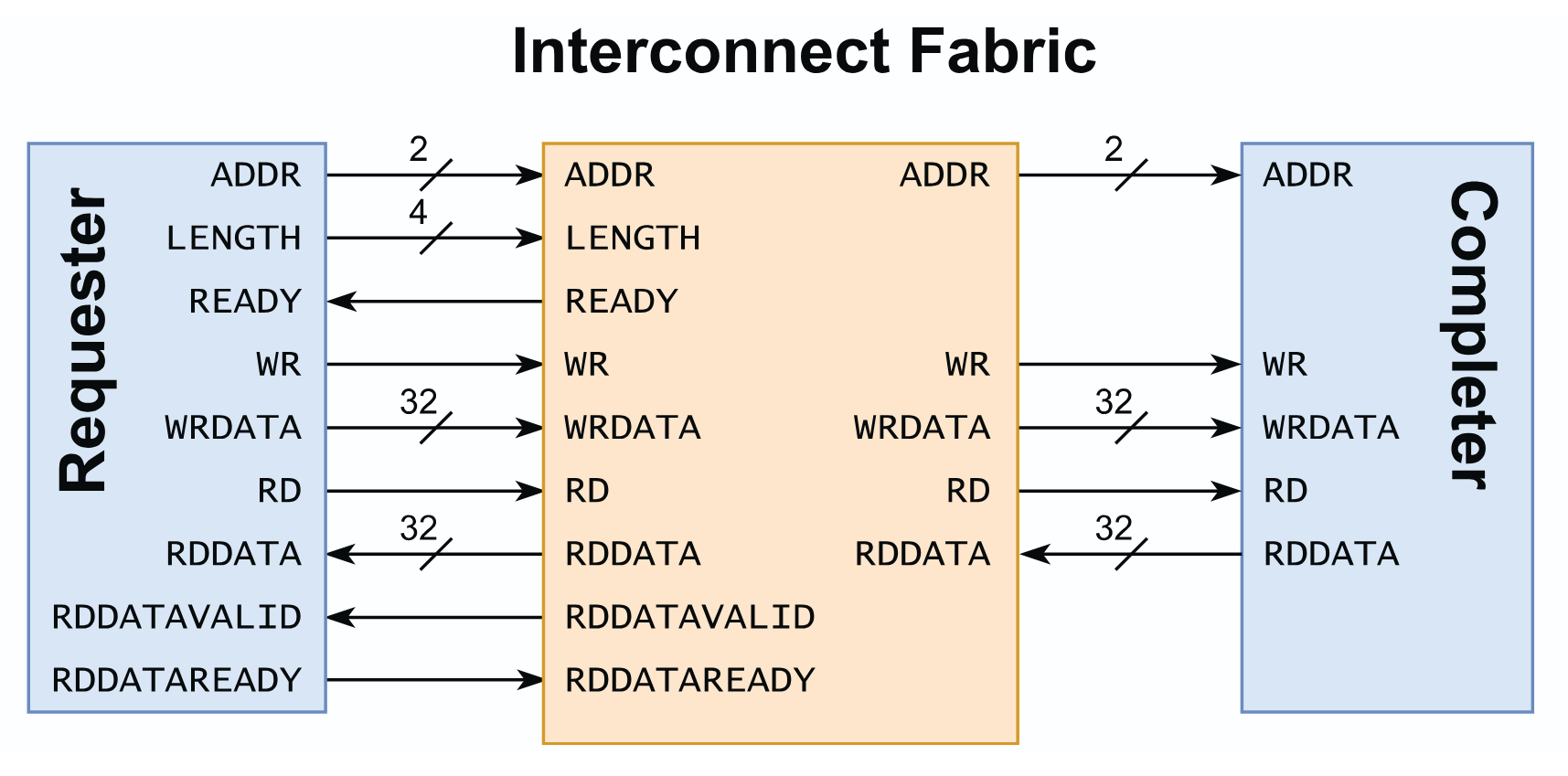

Interconnect Protocol Vs Interconnect Fabric

How can we connect multiple completers to multiple Requestors?

The naive method would be making many Requestor interfaces for each completer but that would incur a lot of logic and chip area. As you increase the number of requestors, things get problematic as you would need a complete bipartite graph topology between requestors and completers, this does not scale well.

Pasted image 20251003185851.png

Thus we need something to Multiplex requestor signals to the needed completer. To do this we need to introduce an interconnect Fabric.

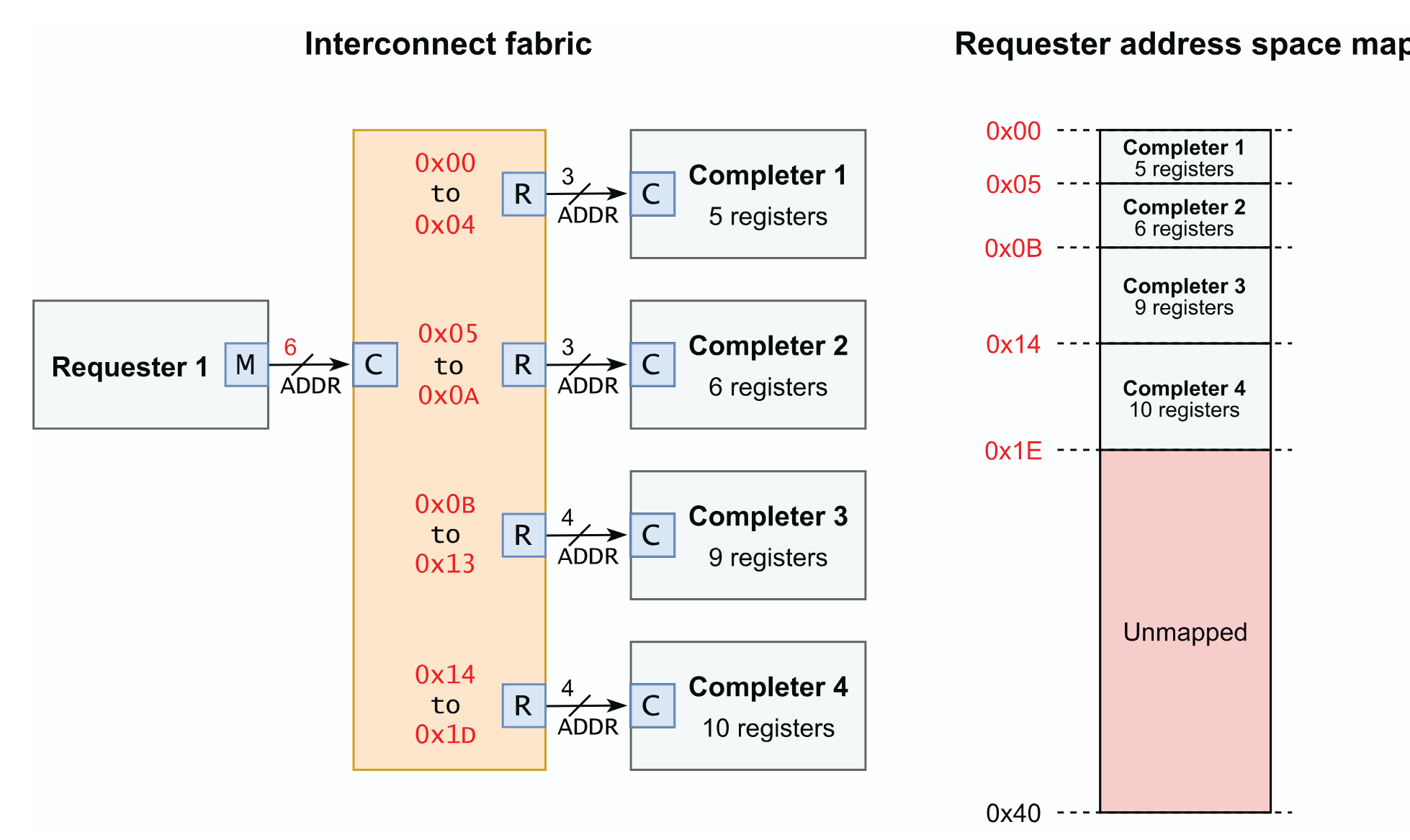

Proposed Design

Pasted image 20251003190142.png

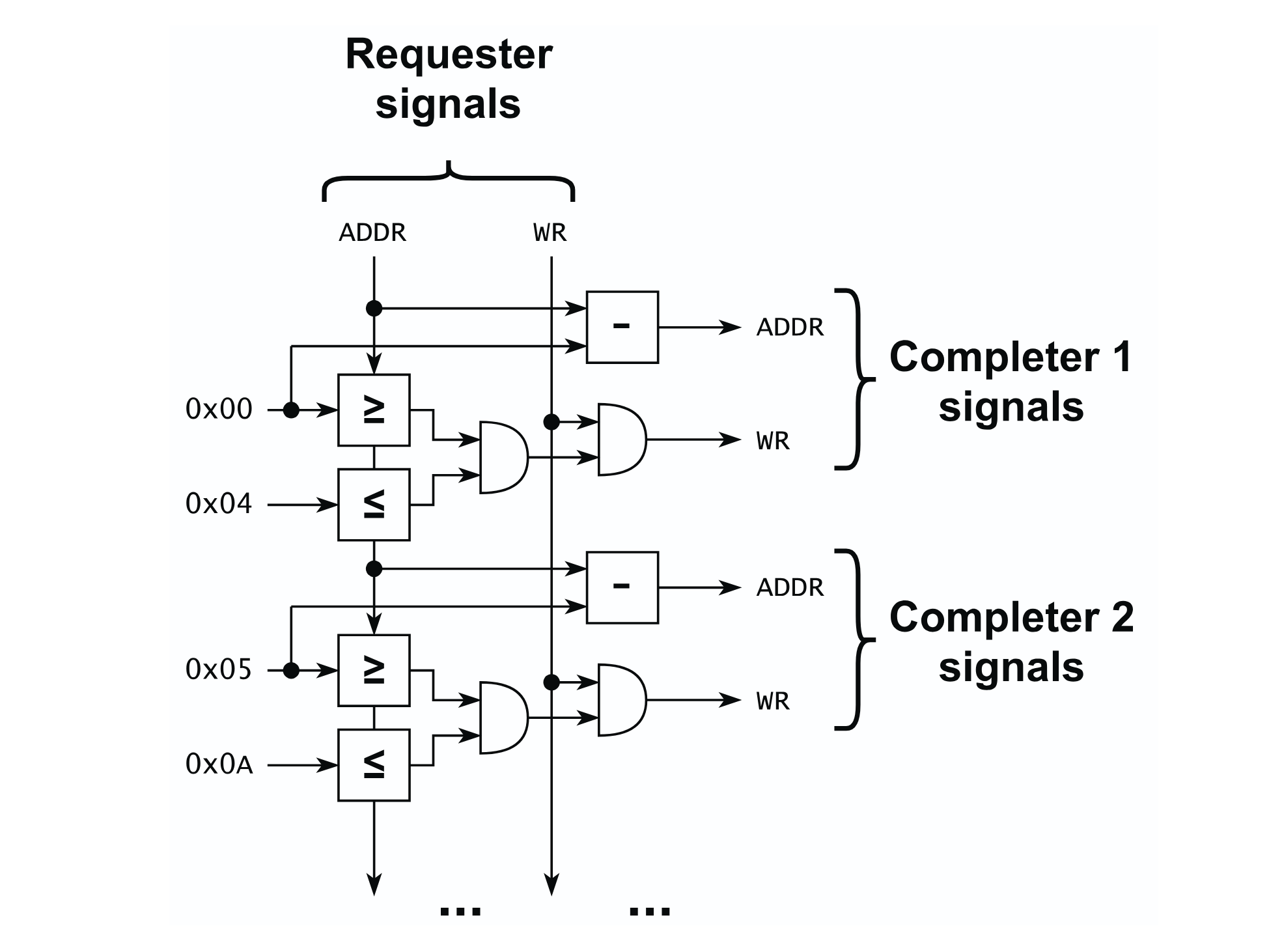

This is an elegant solution that simply lets requestor address the completers using an ADDR signal to the interconnect fabric. This is called the address space. All interconnects contain an address decoder which takes care of address resolution, this is just a bunch of comparators.

Pasted image 20251003190823.png

This arrangement of address decoder is very bulky, and introduces a long critical path reducing the interconnects maximum clock frequency. We can implement better address mapping to simplify the logic of address decoders.

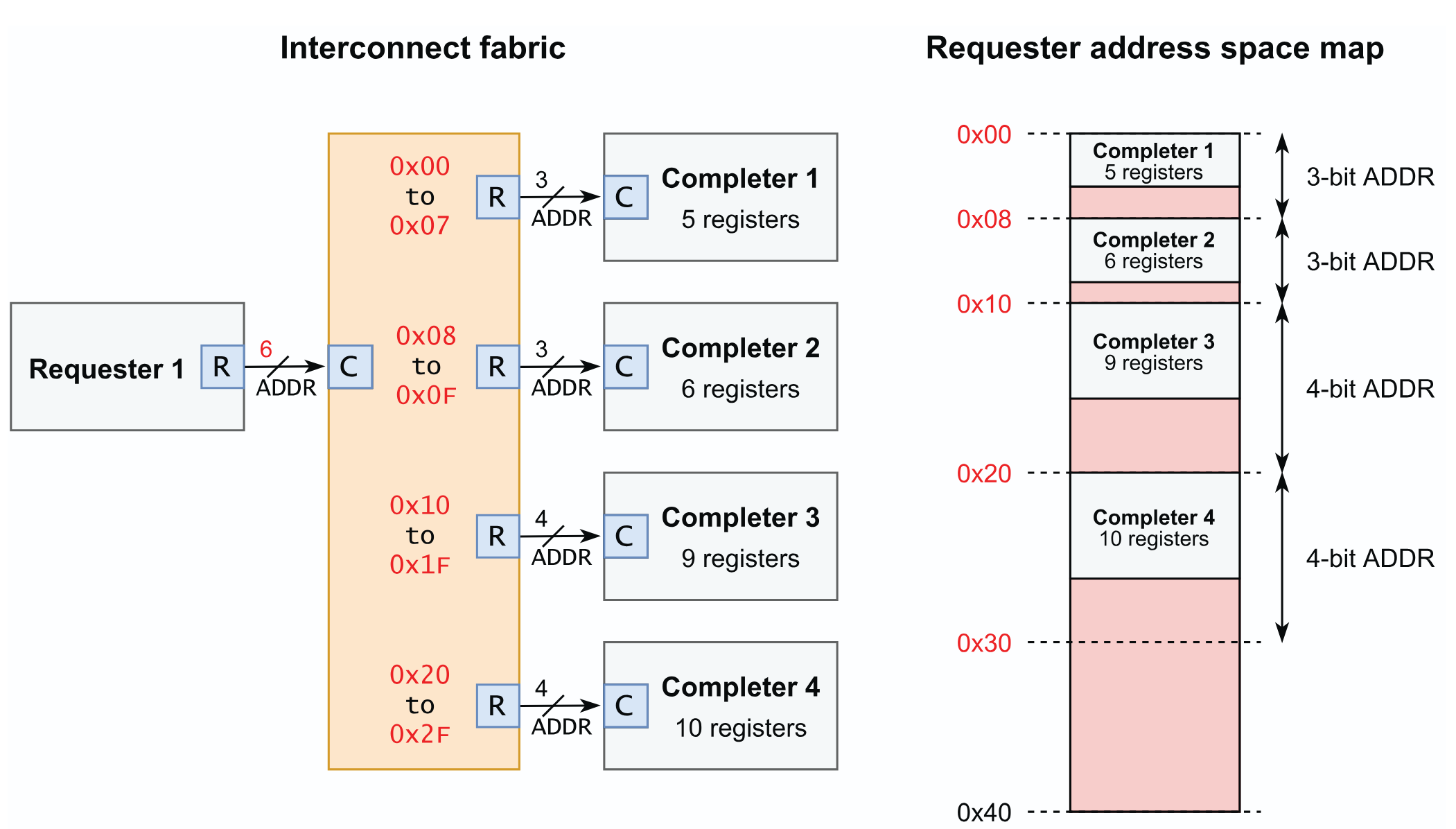

Lets propose only putting completers's address space on power of 2 addresses.

Pasted image 20251003191255.png

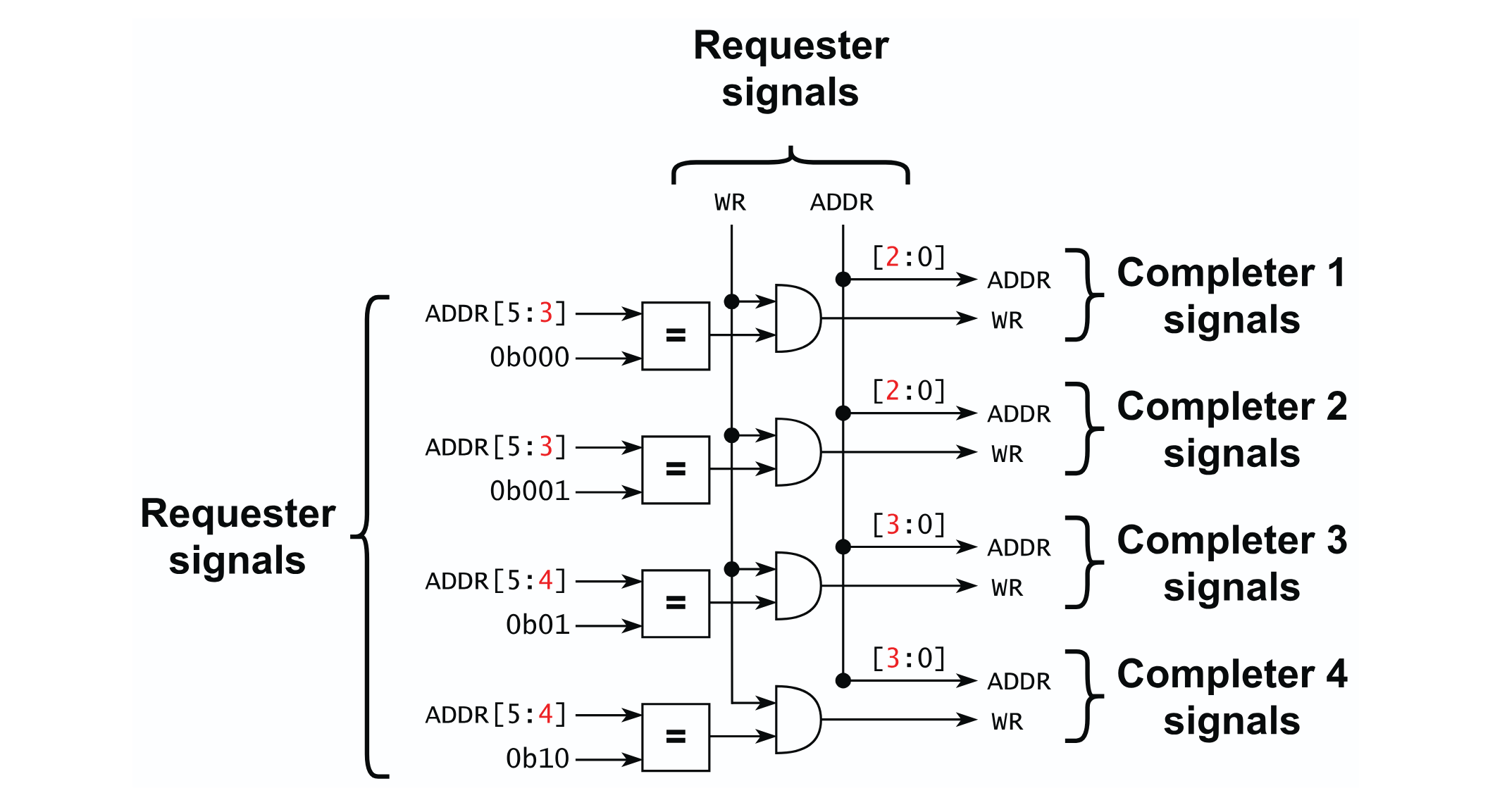

This way, we can simplify our logic, and instead of using comparators for both the upper bound and lower bound of the address space, we can just compare the most significant bit eliminating the need for a comparator and a subtractor:

Pasted image 20251003191451.png

Arbitration

When dealing with multiple requestors it is not uncommon to have two requestors request a signal from a completer at the same time. Therefore there must be an intermediary entity, an arbiter that takes into account requestor requests.

Shared Bus Architecture

Shared bus architectures are viable when all completers and requestors share the same interconnect protocol interfaces.

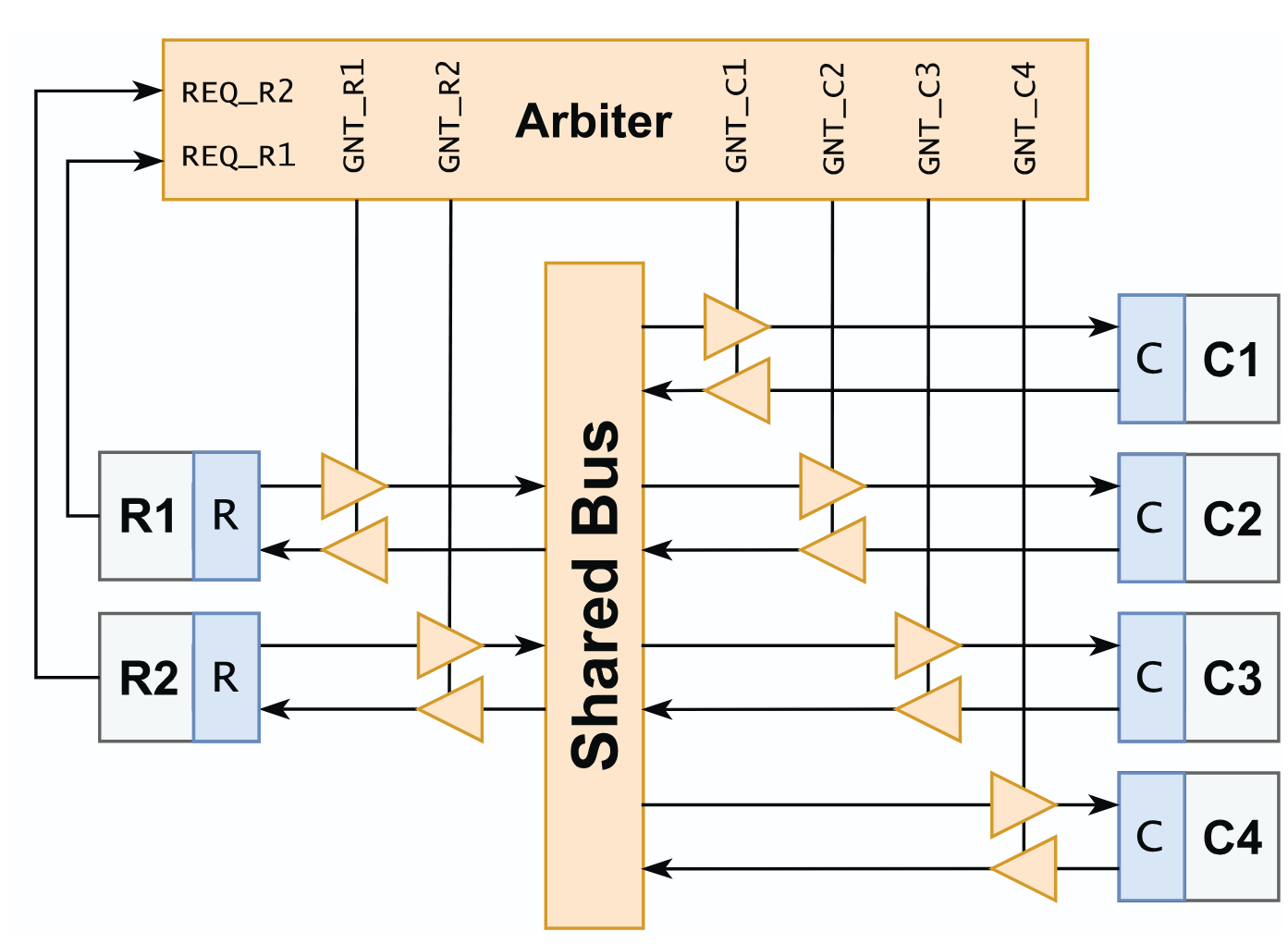

Pasted image 20251004114249.png

All requestor and completer interconnect interfaces have to be guarded by a tri-state gate because only a single requestor–completer pair can be connected to the bus at any given time.

Implementation Note

we need instead to use an additional out-of-protocol signal between the requestors and the arbiter for this purpose (thus, shared buses use requestor-side arbitration).
The arbiter receives all requestor requests and sequentially grants bus access by enabling the specific requestor and completer’s tri-state gates.

Advantages

Easy to Implement
Can operate at high clock speed
Economical in Hardware resources

Disadvantages

Does not Support any notion of concurrency, i.e, requestors cannot communicate with different completers in parallel.

Quote

Shared-bus architectures can therefore cause requestors in a systems to spend a significant amount of time waiting for access to the bus, and waiting times get worse the more requestors exist in the system, which is an unfavorable situation for SoCs, which often contain many independent accelerator units that act as requestors. Shared-bus architectures are, therefore, rarely used in SoCs.

Full Crossbar-Switch Architecture

Full Crossbar-Switch Architectures are Completer-side arbitration and this allows for maximum concurrency in the system.

Pasted image 20251004115810.png

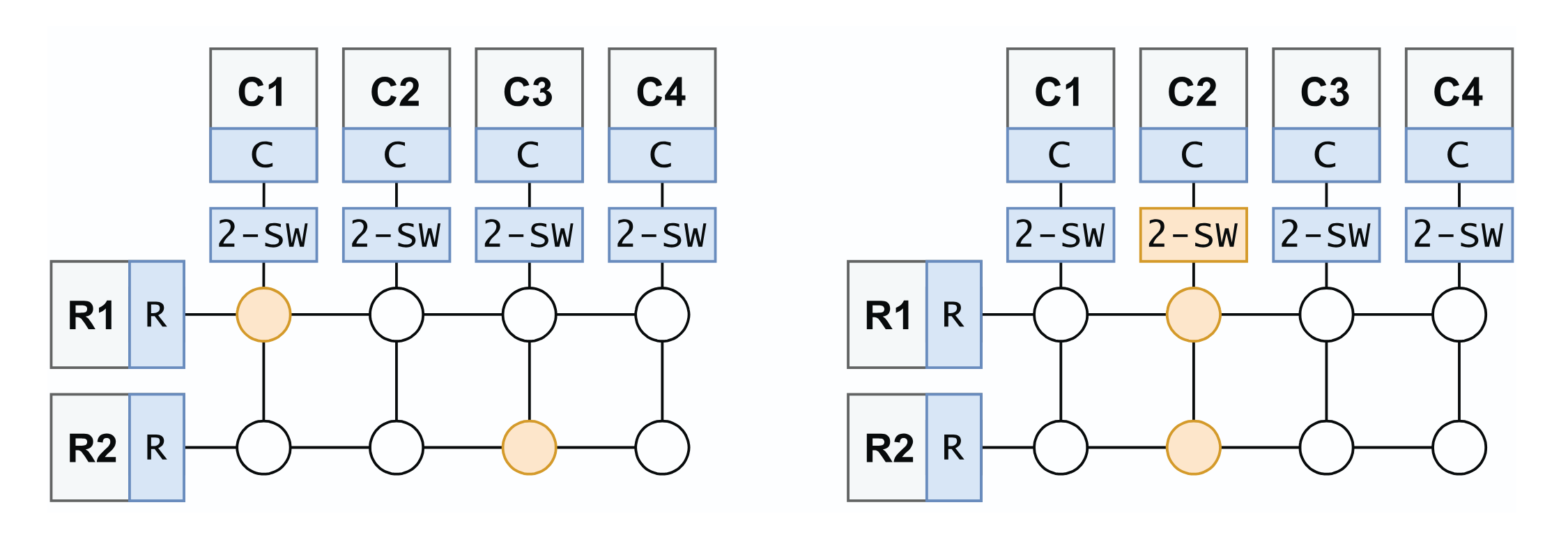

On the left Completers Switches 2-SW are closed as there is no requestor collision, On the right Completer's Switch is now open as there is requestor collision.

Implementation Note

"full crossbar switches do not require any extra out-of-protocol signals for arbitration purposes because each switch can see when multiple transactions are simultaneously directed at the same completer and can automatically provide backpressure on all requestors except the one that was granted access to the completer. Therefore, the interconnect protocol itself acts as the arbitration mechanism"
The Crossbar logic itself defines the arbitration policy: this can be round-robin priority of requestors, or priority access, basically a scheduler.

disadvantages

Full Cross-bar switches require a lot of resources area-wise on the die. The area of the cross-bar switch grows quadratically with the number of requestors and completers in the system. (as it is basically a square matrix of sitches)

Partial Crossbar-Switch Architectures

Quote

In real-world SoCs, some requestors may only ever need connectivity to a subset of the system’s available completers. For example, while a CPU may need to be connected to most peripherals, a DMA unit may only need interconnection with memories.

Pasted image 20251004123946.png

Each completer switch is sized to only accommodate the requestors that communicate with it.
